DC-AC - CN41B230-500-SOF-C

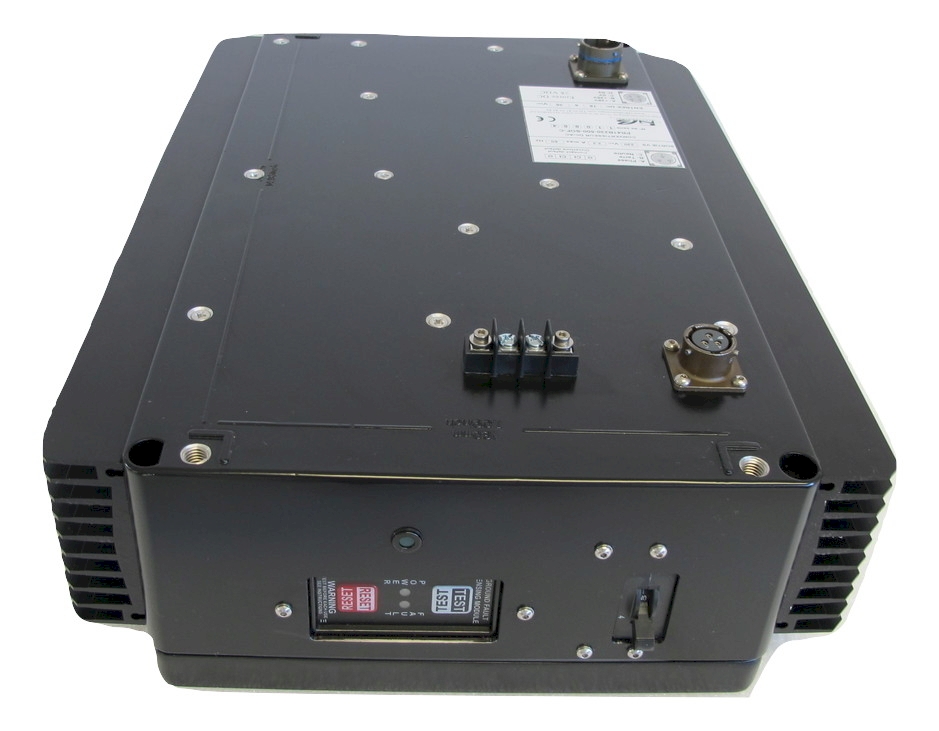

The DC-AC inverter CN41B designed by CNB Electronique is meant for military applications, where it generates AC voltage from a battery's DC voltage to provide nearly 500W of power.
Other versions are also available starting at a few hundred watts upon request.
Technical specifications
- Series: CN41 B 230-500-SOF-C
- Family: DC-AC
- Technology: Switching
- Use: Embedded
- Dimensions in mm: 400x270x111 mm
- Maximum Power: 500W
- Number of Outputs: 1
- Input Voltage Range: 18 à 33 VDC
- Output Voltage: 230VAC 2.2A
- Output Power: 500W
